The USB Solution that’s fast, easy and has many security options
Save data on a USB-Stick with the RX400 Central high-performance data copy system. The RX400 Central serves as a complementary media delivery system to optical (CD/DVD/Blu-ray), when higher capacity is a requirement.
When optical is no longer an option as is often found in organizations that no longer allow optical drives on laptops, USB is a logical solution. The system allows for ultimate flexibility:
- Use with Rimage WORMable USB-Sticks
- Submitting unique jobs to each USB-Port
- Additional features such as encryption
- Use without security with regular USB-Sticks
Functionality

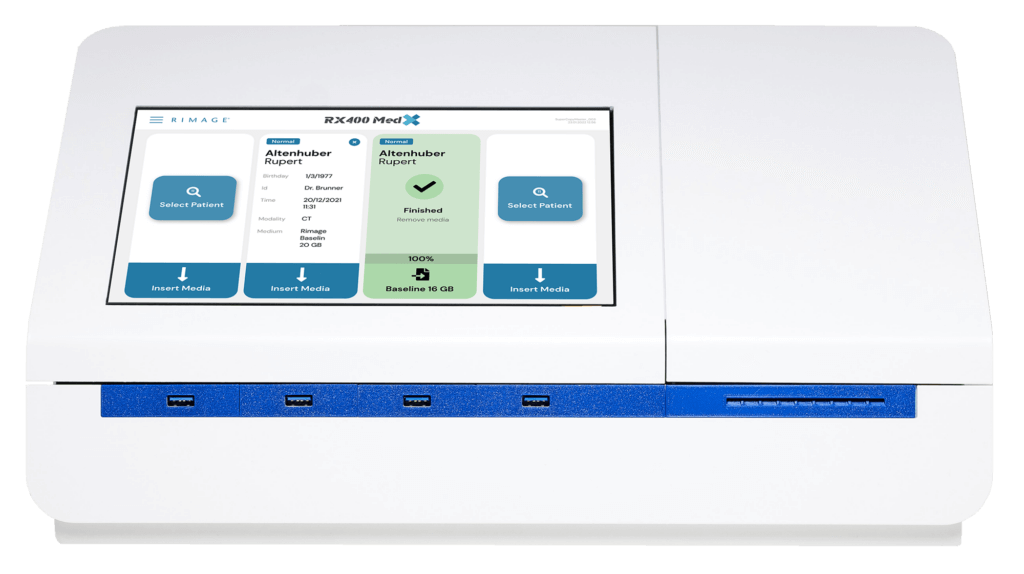

The RX400 Central is a compact, fully integrated desktop device including integrated computer, 4 front USB-Ports, label printer and touch screen and can be complemented with an internal DVD drive to import data from CD/DVD.
The system can be easily integrated into your existing workflow. With the Webclient you can access the RX400 Central from your entire network, creating USB-Sticks that meets your security requirements. With the ability of adding a copy release PIN, you can ensure that only you are able to release the sent files to a USB-Stick at the RX400 Central system level.
The integrated printer prints the label as soon as the USB-Stick is unplugged.
What makes a Secure USB-Stick truly secure?
With positive air flow through a front-accessible filter, quickrelease recorders, front-facing hard drive bays and separate printers, Catalyst II systems are designed to be easily maintained in any environment.
Rimage Central USB-Sticks
| RIMAGE CENTRAL CORE | RIMAGE CENTRAL ULTRA | |
|---|---|---|
| USB-Version | 3.1 | 3.2 Gen 2×1 |
| Capacity | 16 GB, 32 GB, 64 GB, 128 GB | 256 GB, 512 GB, 1024 GB |
| Feature | Single-WORM | Single-WORM |
| Connector | USB A | USB A |
| Max Read/Write Speed | 400/200 MB/s | 1000/800 MB/s |
| Sequential read/write | 40/30 MB/s | 185/260 MB/s |
Value for Customers
Security
The RX400 Central can optionally be used with Rimage USB-Sticks that have special security features such as write-protection. This dramatically reduces the probability that malware, viruses, or other threats can be added on the stick and thus get into highly sensitive networks.
The Rimage RX400 Central USB-Sticks are pre-protected when deliverd and only the RX400 Central is able to add data to those particular USB-Sticks. This limits the risk of Malicious USB-Sticks and provides an additional level of important protection in an IT-Environment. With the RX400 Central we are adding a new layer of security for physical data. Your data can be encrypted (using AES 256) and in case of a loss, it will be nearly impossible to access.
With the integrated, adhesive paper thermal printer you can easily label USB-Sticks individually, ensuring you are handing the right stick to the right person. The dedicated labels are automatically created on a PE-Foil label once you unplug a recorded and verified USB-Stick.
Simplified Operations
The integrated touchscreen shows all waiting jobs, sorted by job ID, coming from any connected source in your network. Via the touchscreen, you can select which job you want to store on the USB-Stick.
With this high-performing hardware and USB-Sticks you can create USB-Sticks with up to 1 GB in 1 minute. This allows you to create media on the spot, whenever the need arises.
Reliable Workflow
Without any moving mechanical parts, the RX400 Central is very service friendly. Most of the parts are easily swappable and accessible by opening the cover.
The solid state drive (SSD), which contains all of your device configuration data and locally used job data, is easily accessible from a locked compartment within the RX400 Central. This allows you to easily exchange a broken unit (if needed), using the existing SSD in the new unit.
Dedicated Support
The Rimage worldwide service organization has dedicated application engineers to provide support during all stages of system integration.
Easy Integration
The RX400 Central API enables easy integration for software providers. The RX400 Central is already fully integrated into several workflows.
Service Options
For the RX400 Central system we offer two different types of maintenance contracts to accommodate the needs of our customers.
Time and Materials
Customer sends in the RX400 Central system. When the system arrives to the service depot, the Service team will repair the system as quickly as possible After repair, the system will be sent back to the customer and Rimage covers the return freight costs.
Rapid Exchange Plus Service
Rimage will ship a replacement unit overnight to the customer along with RMA instructions for returning the broken equipment and a return label.
Upon receipt of the replacement, the customer will ship back the defective unit using the return label.
Do you know Write-protect?
After recording data, the Rimage RX400 Central can optionally lock the USB-Stick at the hardware controller level.
This will prevent all further attempts to write, modify or erase data on the device. Being locked at the hardware controller level means that typical bypasses, such as formatting the device or using alternate Operating Systems, will not work. Using Rimage Central USB-Sticks ensures that your highly valued data is well protected and the risk of infection with a computer virus or malware is very limited.
System Specifications
| RIMAGE RX400 CENTRAL | |
|---|---|
| Ports | 4 |
| Printer | Integrated Thermal Label Printer |
| Label | B/W PE-Foil labels, adhesive, 54 × 25 mm |
| Display | 10.1″ Touch Display, 1280 × 600 px |
| Storage | System drive: 120 GB NVME Cache drive: 512 GB SSD (optional with up to 8 TB) |
| RAM | 16 GB |
| Network Adapters | 1 × 1 GB Ethernet |
| Height | 158 mm / 6.2″ (back), 82 mm / 3.2″ (front) |
| Width | 445 mm / 17.52″ |
| Depth* | 254 mm / 10″ |
| Weight | 9 kg / 19.84 lb |
| Power Specifications | 24V DC, 4 A, < 100 W |
| Warranty | 12 months |
